Official "Building a PC" Thread


  • Please log in to reply
835 replies to this topic

#36 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 28 July 2011 - 09:11 AM

This really should not be a thread for people to get recommendations on specific parts.  You're going to have numerous people asking for very specific advice at the same time.  It's much easier and more organized for them to make their own threads.  You should really edit this into the OP: "If you want advice on parts to buy then please make your own thread."

Leave general questions and tips here.  Things like "How much RAM do I need?" and etc.

View Postshadowsigma, on 25 July 2011 - 10:28 PM, said:

I just posted my build on someone else's rate my build thread since I'm new and know sometimes people get upset about starting a new thread on the same topic. Comet made an official Topic so I migrated it over here. I'm just curious if the gap was bigger than they originally thought and if the performance upgrade is worth it or if I should stick with what I found because it's a good deal. I don't want to upset anyone since I'm new and the one thats asking for help.
Asking for advice about buying a PC is not redundant even if other people are asking for advice.  Everybody's needs are different, so it's best if you just make your own thread so we can focus on your specific needs.   No one here will jump on you for doing that, especially because PC hardware and prices change so rapidly it isn't a smart idea to have one unified thread because over time advice will change.
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#37 Comet

Comet

    9th Robot Master

  • Member
  • 18,656 posts

Posted 28 July 2011 - 11:06 PM

View Postcusideabelincoln, on 28 July 2011 - 09:11 AM, said:

This really should not be a thread for people to get recommendations on specific parts.  You're going to have numerous people asking for very specific advice at the same time.  It's much easier and more organized for them to make their own threads.  You should really edit this into the OP: "If you want advice on parts to buy then please make your own thread."
I think you're right. There should be a source for just general information in the process, but still allow for an outlet for users to specialize their questions. I'll change it in my OP.
Posted Image

3DS Friend Code: 5343-8030-5769

#38 john gannon

john gannon
  • Member
  • 1,612 posts
  • LocationChicago IL USA

Posted 01 August 2011 - 12:49 PM

Ok folks, I've got $1000 to spend on upgrades and have not kept up with PC tech in years.

I've got an aging system now with a Geforce 8800gtx and some old AMD chipset, it needs to be put to bed.

I want a new chipset, new GPU, new ram and a new case/power supply.

Any suggestions for an old PC gamer?

#39 forsayken

forsayken
  • Member
  • 6,904 posts

Posted 01 August 2011 - 08:40 PM

View Postjohn gannon, on 01 August 2011 - 12:49 PM, said:

Ok folks, I've got $1000 to spend on upgrades and have not kept up with PC tech in years.

I've got an aging system now with a Geforce 8800gtx and some old AMD chipset, it needs to be put to bed.

I want a new chipset, new GPU, new ram and a new case/power supply.

Any suggestions for an old PC gamer?

i5 2500k, z68 mobo, GTX 570 or Radeon 6950. 4GB (or 8GB - doesn't matter) RAM. That should do it. You'll just barely squeek by on budget but you should be able to cover it.

If you want to save some money, cheaper P67 mobos exist and you can do a GTX 560 Ti or Radeon 6870.

Don't skimp on the PSU. Enermax, Corsair, PCP&C, Seasonic and most Antecs are good. If you are on a super tight budget, OCZ PSU's are fine just because of the insane rebates they offer. The rest of the parts don't matter so much. Just go by Newegg user reviews.

#40 mach250

mach250

    Who Am I?

  • Member
  • 3,281 posts

Posted 03 August 2011 - 09:15 AM

What's the diff between p67 and z68?
Flickr

HTPC: i7 4790K @4.7ghz - Asus Z97 Pro - Superclocked EVGA GTX 780ti 3GB - Corsair Vengeance Pro16GB DDR3 PC1600
Kingston HyperX 120GB SSD + 2x3TB WD Black- Corsair HX750 PSU - Corsair H110 CPU Cooler - Corsair 540 Case

Office PC: i5 2500K - Asus P8P67 Pro - Superclocked EVGA Geforce 570 GTX - 8GB DDR3 PC1600
5x1TB WD Black- Corsair HX650 PSU - Thermalright Venemous-X Heatsink
Excess: Core 2 Duo E8400 - Asus P5K Deluxe - XFX GTX 260 894MB - 8GB DDR2 PC6400
Seagate 500GB - Corsair HX520 PSU - Thermalright Black-120 w/Thermaltake Fan

#41 dualhunter

dualhunter
  • Member
  • 3,044 posts
  • LocationMontreal

Posted 03 August 2011 - 09:29 AM

P67 lets you overclock a 2500K/2600K processor but doesn't support the the integrated graphics on the processor, H67 lets you use the graphics but basically no CPU overclocking and Z68 lets you do it all and also includes SSD caching.

#42 mach250

mach250

    Who Am I?

  • Member
  • 3,281 posts

Posted 03 August 2011 - 11:26 AM

So of you have a vid card and might not buy an ssd for a while it's not important to get z68?

And by caching what do you mean? Current mobos don't allow for caching, just using them aa storage?
Flickr

HTPC: i7 4790K @4.7ghz - Asus Z97 Pro - Superclocked EVGA GTX 780ti 3GB - Corsair Vengeance Pro16GB DDR3 PC1600
Kingston HyperX 120GB SSD + 2x3TB WD Black- Corsair HX750 PSU - Corsair H110 CPU Cooler - Corsair 540 Case

Office PC: i5 2500K - Asus P8P67 Pro - Superclocked EVGA Geforce 570 GTX - 8GB DDR3 PC1600
5x1TB WD Black- Corsair HX650 PSU - Thermalright Venemous-X Heatsink
Excess: Core 2 Duo E8400 - Asus P5K Deluxe - XFX GTX 260 894MB - 8GB DDR2 PC6400
Seagate 500GB - Corsair HX520 PSU - Thermalright Black-120 w/Thermaltake Fan

#43 dualhunter

dualhunter
  • Member
  • 3,044 posts
  • LocationMontreal

Posted 03 August 2011 - 12:46 PM

Z68 boards probably have more ports and stuff. You can also set it up so that it will automatically switch between onboard video and your video card depending on how much video power you need. However modern video cards' low power state is pretty good so really the onboard is basically useless unless there is a problem with your videocard and you need something temporarily while you wait for the replacement.

A SSD will work fine with a P67 board you just can't use it as a cache. Intel Smart Response Technology is currently only available on Z68 boards and it uses a SSD as a cache. It basically puts the SSD in RAID with your HDD so that your most commonly used stuff will be cached on the SSD giving your better performance. The advantage is that you don't have to worry about managing whether you stick a program on the SSD or HDD and moving stuff around, SRT takes care of it so you just have 1 visible drive. It only supports up to 64GB so if your SSD drive is bigger, only the first 64GB will be used for the cache but the rest of the drive will still but usable and will show up as a separate drive. So basically it improves performance, reduces the hassle of managing limited space and saves you money since you're fine with a 20-64GB drive. If you want performance at any cost however you'd be better off with a larger SSD and not bothering with the cache.

#44 mach250

mach250

    Who Am I?

  • Member
  • 3,281 posts

Posted 03 August 2011 - 12:52 PM

seems like ill stick to p67, if I get an ssd it will be the only hd in this pc since I'm taking all the 1tb drives and setting up a server tower.
Flickr

HTPC: i7 4790K @4.7ghz - Asus Z97 Pro - Superclocked EVGA GTX 780ti 3GB - Corsair Vengeance Pro16GB DDR3 PC1600
Kingston HyperX 120GB SSD + 2x3TB WD Black- Corsair HX750 PSU - Corsair H110 CPU Cooler - Corsair 540 Case

Office PC: i5 2500K - Asus P8P67 Pro - Superclocked EVGA Geforce 570 GTX - 8GB DDR3 PC1600
5x1TB WD Black- Corsair HX650 PSU - Thermalright Venemous-X Heatsink
Excess: Core 2 Duo E8400 - Asus P5K Deluxe - XFX GTX 260 894MB - 8GB DDR2 PC6400
Seagate 500GB - Corsair HX520 PSU - Thermalright Black-120 w/Thermaltake Fan

#45 ant

ant
  • Newly Registered
  • 1,723 posts

Posted 08 August 2011 - 04:56 AM

What the best video on "How to build a PC"  This will be the fist time I am actually building one. I don't want to mess up.
"In real life , you're just a bitch with a keyboard"




Posted Image

#46 Mayofist

Mayofist

    Professional MS Paint Artist

  • Newly Registered
  • 5,450 posts

Posted 09 August 2011 - 09:23 AM

Is this a good deal???

http://www.newegg.co...N82E16820104266

Not sure of the quality based on the reviews but 8gb of RAM for $50 seems good.
  • • Any number images
  • • Images up to 900 x 200 pixels
  • • Any number of URLs
  • • Any number of lines

#47 SillyMikey

SillyMikey

    The Voice of Truth

  • Newly Registered
  • 771 posts

Posted 09 August 2011 - 04:15 PM

Actually can any of you guys help me. I know nothing of building a PC but i do want a good processor and GFX card. I dont really know what to look for. Theres so much of everything....

Bascially i want something that will run BF3 without breaking a sweat.

#48 JaconKin

JaconKin
  • Newly Registered
  • 2,520 posts

Posted 09 August 2011 - 04:19 PM

http://boards.badcar...-me-build-a-pc/

You can take a look through that thread if you want to see possible builds. There are other threads around as well obviously, also you can look at the newegg videos posted in the above thread to get a better idea of everything concerning building computers, selecting your parts down to the build itself and installing the OS and tweaking your system.
Taking a break from this place.
Posted Image

#49 SillyMikey

SillyMikey

    The Voice of Truth

  • Newly Registered
  • 771 posts

Posted 09 August 2011 - 04:25 PM

View PostJaconKin, on 09 August 2011 - 04:19 PM, said:

http://www.badcartri...-me-build-a-pc/

You can take a look through that thread if you want to see possible builds. There are other threads around as well obviously, also you can look at the newegg videos posted in the above thread to get a better idea of everything concerning building computers, selecting your parts down to the build itself and installing the OS and tweaking your system.

ill check that thanks

#50 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 09 August 2011 - 07:45 PM

I think it's time to take this thread to the next level.  I propose the OP be changed to the following, so that we get some consistency in our community activity!
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#51 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 09 August 2011 - 07:45 PM

So you're interested in building a PC?  Read this post first!  In this thread you can get some general guidelines and a foothold idea of where to begin building your own PC.  But most importantly when you're absolutely ready to take the plunge, please create your own thread on this board with this information:

  • What is your budget?  How much are you planning to spend?  E.g. "I do not want to spend more than $800."
  • What country do you live in?
  • How do you feel about rebates?
  • What is your overall goal for this machine?  What do you plan to do with it? E.g. "I want to play games at max details" or "I'm going to do a lot of video editing."
  • Are you looking to build the tower only, a complete computer package with peripherals, or simply upgrade parts of your current computer?
  • Do you need to buy an operating system and does that need to fit in your budget?
  • Do you need to buy any peripherals (monitor, mouse, keyboard, headphones) and do they need to fit under your budget?
  • Please list your monitor and its resolution if you are going to reuse it.  If you are upgrading your current machine, please list your current specs.
  • List any other special interests that come to mind.  E.g. "I want low power and cool-running system," "I have zero interest in overclocking and will not do it," or "I don't care about upgrading; I'm just going to build this machine and use it."

The reason all of this information is important and why you need to create your own thread is because prices and technology change rapidly, sometimes on a daily basis.  Your needs are also different than someone else's needs, and since there are  various levels of PC components and numerous combinations, tweaking a build to fit your computing lifestyle takes personal and unique recommendations.  It's much easier for us to communicate with you and stay personal if you create your own thread.  It keeps this sticky from getting bloated and having the conversation between you and us stretch over multiple pages.

Sample builds

Following are some sample builds to give you an idea what kind of parts you can get at a few different price points.  Keep in mind many of these parts can be mixed and matched, and there are more options out there should your needs not fit into these categories.  There's something for everyone.  You can spend a little bit less on the case and a little bit more on the video card.  You could drop a few different components down a notch to fit an SSD into your budget.  The possibilities are endless!  Which is a great reason why you need to start your own thread!

What can you get for gaming - $500?

Approximately $475

What can you get for gamng - $750?

Approximately $722

What can you get for gaming - $1000?

Approximately $995

SSDs:
64GB Crucial M4 - $115
80GB Intel 320 - $160
128GB Samsung 470 - $200

Building Tutorials

Newegg TV How to Build a PC

Want to help update the sticky?

If you would like to add something to this sticky, whether it be a sample build, tutorial, new section, or update to old section, then do so.  Let's try to keep this as up to date as we can, and it's easier if it's a community effort.  Changes can be discussed in this thread and a mod will be needed to edit the OP.
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#52 forsayken

forsayken
  • Member
  • 6,904 posts

Posted 09 August 2011 - 08:24 PM

Very nice. Solid starter systems for those budgets too.

#53 JaconKin

JaconKin
  • Newly Registered
  • 2,520 posts

Posted 09 August 2011 - 11:07 PM

Good job lincoln! Exactly what I had in mind when I made a comment in the other thread.

I see the original post has been updated already.
Taking a break from this place.
Posted Image

#54 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 10 August 2011 - 12:14 AM

The frequency of people asking for builds has increased lately; it was just time.  Someone can put together some more builds.  There's still room for something like a $1300 budget, or higher.  A quick and dirty FAQ probably wouldn't hurt either - something that would take care of the big basic questions.  Probably would be best to mutilate shadowsigma's post, the first reply, and dedicate that to FAQs.
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#55 matthewsuperawesome

matthewsuperawesome
  • Member
  • 1,558 posts

Posted 10 August 2011 - 12:32 AM

View PostSillyMikey, on 09 August 2011 - 04:15 PM, said:

Actually can any of you guys help me. I know nothing of building a PC but i do want a good processor and GFX card. I dont really know what to look for. Theres so much of everything....

Bascially i want something that will run BF3 without breaking a sweat.
I'm in pretty much the same boat as you man. Just been staying active on the board, asking questions and doing a ton of research, and it keeps coming back to the i5 2500k and the 560ti for a reasonably priced build.

#56 JaconKin

JaconKin
  • Newly Registered
  • 2,520 posts

Posted 10 August 2011 - 09:38 AM

View Postcusideabelincoln, on 10 August 2011 - 12:14 AM, said:

The frequency of people asking for builds has increased lately; it was just time.  Someone can put together some more builds.  There's still room for something like a $1300 budget, or higher.  A quick and dirty FAQ probably wouldn't hurt either - something that would take care of the big basic questions.  Probably would be best to mutilate shadowsigma's post, the first reply, and dedicate that to FAQs.

What do you mean, sort of answering basic questions like what is overclocking?, what is the difference between this RAM and That?, What is SLI and Xfire?, How big of a power supply do I need etc?.
Taking a break from this place.
Posted Image

#57 Mayofist

Mayofist

    Professional MS Paint Artist

  • Newly Registered
  • 5,450 posts

Posted 10 August 2011 - 10:20 AM

View Postmatthewsuperawesome, on 10 August 2011 - 12:32 AM, said:

I'm in pretty much the same boat as you man. Just been staying active on the board, asking questions and doing a ton of research, and it keeps coming back to the i5 2500k and the 560ti for a reasonably priced build.
That's what I just purchased :)
  • • Any number images
  • • Images up to 900 x 200 pixels
  • • Any number of URLs
  • • Any number of lines

#58 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 10 August 2011 - 01:00 PM

View PostJaconKin, on 10 August 2011 - 09:38 AM, said:

What do you mean, sort of answering basic questions like what is overclocking?, what is the difference between this RAM and That?, What is SLI and Xfire?, How big of a power supply do I need etc?.
Yes, like

Power Supplies

What do I need to know?

Brand and even individual model within a brand matters.  There is no standard for how manufacturers rate the total wattage for their power supplies.  So you can have two power supplies both labeled as 500W but actually deliver different real world power.  Some power supplies can't even deliver the wattage they're rated for!

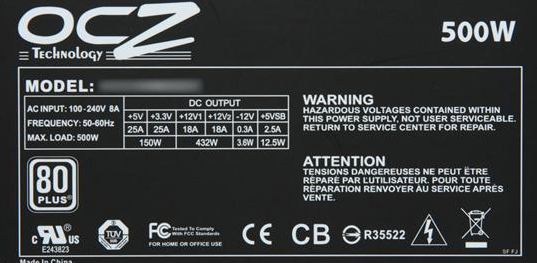

This different way of labeling a power supply comes from the different types of power the PSU delivers.  PCs have required three different voltages to be supplied to them by the rails of PSU: 3.3V, 5V, and 12V.  The power in watts is calculated by taking the voltage and multiplying it by the amperage the unit is rated for. For example a power supply says it can deliver 15A (amps) on the +3.3V rail, which would equal 49.5W for the +3.3V rail.  The inconsistency comes with how these different rails and their wattage are added together.  Some manufacturers are content to label the final wattage as the absolute maximum power delivered (which is a major strain on the componets of the PSU).  Some manufacturers are more realistic and label the final wattage the PSU can deliver safely at all times, which in turn means some 500W power supplies can deliver 600W of real power without blowing up or shutting down.

Modern PCs need most of their power to come from the +12V rail.  The video card and processor almost exclusively use the +12V rail, and they are the most power hungry components in a computer system. Bad power supplies will have the wattage of the 3.3V and 5V rails account for a lot of the final total output.  Good power supplies will be able to deliver a lot on the +12V rails  compared to the final total output since that is the most important rail.  You'll also notice some power supplies have more than one +12V rail.  Since most, if not all, multiple +12V rails power supplies "artificially" split up the +12V rails, you simply can't add the +12V1, +12V2, etc rails together to find out the maximum power the PSU can deliver on the +12V rail.  You have to look at the combined +12V rail number which is usually listed somewhere on the label.

So pay attention to who makes the power supply.  In general you can feel safe about buying a power supply made by these guys:  Seasonic, Antec, Corsair, Enermax, PC Power and Cooling, Silverstone, OCZ, XFX.

Price is also an indicator you can use.  Up to 500W expect to pay $40-$60.  500W-750W expect to pay between $60-$120.  Over 850W expect to pay $120 or more.  So if you see an 850W PSU going for $75... stay away! It's probably junk.

All recent good power supplies are also being rated 80 Plus Certified. So that is another indicator of the quality of the power supply.  Make sure you get one that is 80 Plus, Bronze, Silver, or Gold.  So if you see an Antec power supply that is not rated 80 Plus, then good chances it's a very old design and you should avoid it.

So how much power do I need?

A quick way to figure this out is to use an online PSU calculator.  They will give you a rough estimation.  Just keep in mind the figures they show assume a quality power supply.  If you want to estimate yourself, then you will need to put some work into it.  First you'll need to estimate how much power your system will draw and then you'll need to look at the power supply and what it can deliver on the +12V rails.

Since the video card and processor are the two biggest hogs, you need to find out what they actually need.  To get real-world numbers for the video card, check out the latest review at Techpowerup.  They measure how much power the video card is drawing only.  If you're going to be gaming then you need to look at the Peak graph.  If you're going to do GPGPU work like Folding@Home then you should look at the Maximum graph.  We'll use the GTX 460 as an example here, and it draws 130W while gaming.  To get real world numbers for the processor, check the latest review at Lost Circuits.  They only test how much power the processor is using.  We'll use the the 2500K as an example, and it uses 46W under load.

To account for the power to the rest of the system, use 50W as an estimation.  So 130W + 46W + 50W = 226W.  Now you do not want the power supply to be running at its maximum capacity, so add 25% to the total we just figured.  226W * 1.25 = 283W.  If you divide 283W by 12V, you get 24A.  You need to make sure the power supply is rated to deliver at least 24A on the +12V rail (or combined +12V rails).  You can find out what the PSU can do by looking at the label on the power supply, as seen in Example 1 and Example 2.  The first example states the max load for 12V1 and 12V2 is 384W, so this power supply is good enough for our example gaming system. The second example doesn't explicitly state the max load, but you'll notice it has 432W directly under +12V1 and +12V2 numbers, so that means 432W is what those two +12V rails can deliver combined.

Another way to get a rough estimation is to simply look at the TDP of the video card and processor.  This is a safe estimate as TDP should be higher than what you'll normally see in the real world.  You can get the TDP of the video card at GPU Review under "Max Power Draw" and the TDP of the processor at CPU-World under "Thermal Design Power (W)".

It doesn't hurt to have a power supply bigger than what you need.  So play it safe if you're not comfortable or you're unsure and get a power supply more than you think you need.  Power supplies will only output the wattage the system components require.  It's like plugging your TV into your wall outlet. The TV doesn't blow up because it's only drawing the power it needs and not the maximum power your house circuit can provide.

What if I'm overclocking?

Overclocking throws off all the estimations.  Overclocking raises the requirements on the power supply.  Since you can overclock a little or a lot, how much more power you need depends on how far you are going to overclock.  Changing the voltages plays a very signficant role and has the biggest impact.  If you're overclocking the processor at stock voltages then add 40W to the base estimation.  Likewise if you're overclocking the video card at stock voltages add another 40W.  If you're increasing the voltage, you can easily add another 100W, or more, for each the processor and video card, meaning an estimated additional 200W would be needed.  So it's definitely recommended to estimate on the high side when picking out a power supply for an overclocked system.

What if I want to know more?

If you want to know more, check out some power supply reviews.  These reviewers go in depth and examine all aspects of the power supply.  You will learn a lot by reading their reviews and articles.

Hardware Secrets
Techpowerup
Jonny Guru
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#59 forsayken

forsayken
  • Member
  • 6,904 posts

Posted 10 August 2011 - 09:52 PM

Awesome write-up. I tend to presume I know enough about PSU's and still enjoyed skimming through that.

I also like this big table of who's who of power supplies:

http://www.tomshardw...turer,2913.html

It shows who manufactures, who re-brands, and who designs power supplies.

#60 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 10 August 2011 - 11:34 PM

Yeah, JonnyGuru has a very nice FAQ.  It's actually good enough to just link to instead of writing out my own explanation.  Hardwaresecrets also has a guide to finding out who really makes the power supply, which is also linked to in the JonnyGuru FAQ.
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#61 stanicle

stanicle

    Make me a macchiato. Pronto.

  • Member
  • 790 posts

Posted 18 August 2011 - 01:19 PM

Alright finally re-joining the master race after being without a pc for a few years now and girlfriend's laptop just bit the dust. Using my phone for all this... Just a few quick build questions:

http://www.newegg.co...N82E16814130604 - Been eyeing this up. Any good? Otherwise, I want to stick with Nvidia cards. Can I do better for around the price or a little more?

http://www.newegg.co...N82E16813131759 - Would get this with one of the ram combos. Also, planning on getting an I5 2500k processor.  Same questions as above.

Thanks in advance.
wiiu:stanicle

3DS code:0146-8492-4035

#62 Joestradamus

Joestradamus
  • Member
  • 3,904 posts
  • LocationUnion City, CA
  • PSN ID:joemystereo
  • NIntendo ID:joemysterio
  • 3DS FC:5386-8709-4865
  • Steam ID:joemysterio

Posted 18 August 2011 - 04:21 PM

View PostComet, on 25 July 2011 - 07:36 PM, said:


i'm looking into building my brother a budget gaming pc that would be ready to upgrade to bulldozer in the future, i have the same mobo in mind but instead of the athlon  x3 445, I see that for the same price I can get a phenom x3 720 BE. which one of these two is better? i'm completely lost with AMD stuff these days. after my upgrade to i5-2500k, I gave him my old parts which had an athlon 64 5400+.

http://www.newegg.co...N82E16819103652
My name is Joe. A.K.A.! MahManJerryRice2001 ;-)

Posted Image

#63 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 18 August 2011 - 05:17 PM

View Poststanicle, on 18 August 2011 - 01:19 PM, said:

Alright finally re-joining the master race after being without a pc for a few years now and girlfriend's laptop just bit the dust. Using my phone for all this... Just a few quick build questions:

http://www.newegg.co...N82E16814130604 - Been eyeing this up. Any good? Otherwise, I want to stick with Nvidia cards. Can I do better for around the price or a little more?

http://www.newegg.co...N82E16813131759 - Would get this with one of the ram combos. Also, planning on getting an I5 2500k processor.  Same questions as above.

Thanks in advance.

Both things are good.  You can't really get a better video card at that price, unless of course you go used.

Motherboard is good.  It's shy on expansion slots since it's microATX.  So make sure you're not going to need any.

View PostJoestradamus, on 18 August 2011 - 04:21 PM, said:

i'm looking into building my brother a budget gaming pc that would be ready to upgrade to bulldozer in the future, i have the same mobo in mind but instead of the athlon  x3 445, I see that for the same price I can get a phenom x3 720 BE. which one of these two is better? i'm completely lost with AMD stuff these days. after my upgrade to i5-2500k, I gave him my old parts which had an athlon 64 5400+.

http://www.newegg.co...N82E16819103652

The Phenom 720 is better for gaming.  The L3 cache makes a huge difference.  Also this chip is unlocked so it's easy to overclock.  Both processors could potentially unlock to a quad core.  But the Phenom 720 doesn't come with a heatsink, so you will need to add about $20-30 to the price if you don't have an AMD compatible heatsink lying around.
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#64 stanicle

stanicle

    Make me a macchiato. Pronto.

  • Member
  • 790 posts

Posted 20 August 2011 - 04:03 PM

Thanks cusideabelincoln for the help. I didn't even notice the mobo was mini-atx. Do not want that then.

I am trying to do all this on my phone as I said earlier. It sucks. So maybe you guys can help me a little more. Now I have an idea of what parts and whatnot I want to get. Let's see what you guys come up with since I am sure you can do better.

I have a budget of $900. I do not need a case, Monitor, or any input devices. Preferably want to stick to Intel/Nvida. Going to be mainly a gaming pc.  Also, my budget really isnt a strict one. I can go more if its worth it. I plan on ordering my pc in the next few days.
wiiu:stanicle

3DS code:0146-8492-4035

#65 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 20 August 2011 - 06:36 PM

GTX 560 Ti - $235 w/$30 rebate http://www.newegg.co...N82E16814125363

80GB Intel 320 SSD - $160 http://www.newegg.co...N82E16820167047
1.5TB Samsung F4EG - $50 ($10 promo code) http://www.newegg.co...N82E16822152287

Asus P8Z68-V LE - $133 http://www.newegg.co...N82E16813131773

DVD Burner - $20 http://www.newegg.co...N82E16827118040

2500k - $220 http://www.newegg.co...N82E16819115072

Hyper 212 Plus cooler - $28 http://www.newegg.co...N82E16835103065

8GB DDR3 1600 - $50 w/$15 rebate http://www.newegg.co...N82E16820220570

650W Antec Earthwatts - $55 ($15 promo code) http://www.newegg.co...N82E16817371044

Windows 7 - $100 http://www.newegg.co...N82E16832116986

Total is about $1050.  If you don't need Windows 7 or can get a student discount then the price drops.

The SSD is optional and won't affect gaming performance, so you can reduce cost by dropping it.

I recommend a heatsink with your budget.  The stock one won't let you overclock much beyond 4 GHz.  Even if you don't overclock an aftermarket cooler will drop temps significantly compared to the stock cooler.

The promo codes end on August 22nd.
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#66 stanicle

stanicle

    Make me a macchiato. Pronto.

  • Member
  • 790 posts

Posted 20 August 2011 - 06:40 PM

View Postcusideabelincoln, on 20 August 2011 - 06:36 PM, said:

GTX 560 Ti - $235 w/$30 rebate http://www.newegg.co...N82E16814125363

80GB Intel 320 SSD - $160 http://www.newegg.co...N82E16820167047
1.5TB Samsung F4EG - $50 ($10 promo code) http://www.newegg.co...N82E16822152287

Asus P8Z68-V LE - $133 http://www.newegg.co...N82E16813131773

DVD Burner - $20 http://www.newegg.co...N82E16827118040

2500k - $220 http://www.newegg.co...N82E16819115072

Hyper 212 Plus cooler - $28 http://www.newegg.co...N82E16835103065

8GB DDR3 1600 - $50 w/$15 rebate http://www.newegg.co...N82E16820220570

650W Antec Earthwatts - $55 ($15 promo code) http://www.newegg.co...N82E16817371044

Windows 7 - $100 http://www.newegg.co...N82E16832116986

Total is about $1050.  If you don't need Windows 7 or can get a student discount then the price drops.

The SSD is optional and won't affect gaming performance, so you can reduce cost by dropping it.

I recommend a heatsink with your budget.  The stock one won't let you overclock much beyond 4 GHz.  Even if you don't overclock an aftermarket cooler will drop temps significantly compared to the stock cooler.

The promo codes end on August 22nd.

Thanks again! Well that def. looks good to me. Will order it Monday. Can't wait to be back and able to play with you guys.
wiiu:stanicle

3DS code:0146-8492-4035

#67 Mass Appeal

Mass Appeal
  • Member
  • 1,102 posts

Posted 24 August 2011 - 01:45 AM

GREAT THREAD!
I am in the works of wanting to put together a good gaming rig and plan to spend about $900. My friend who knows his stuff is gonna be helping me with it since I have never put one together and well i really would love to learn more about computers. The newegg video on the front page of this thread is pretty good and it honestly doesnt seem too tough. I am pretty much building it for Battlefield 3 and other PC games so i wanna be able to run them pretty well. My buddy put a list of parts together for me just wanted to get any additional input from the Bad Cartridge PC guys on anything I need to tweak.





Intel Core i5-750 Lynnfield 2.66GHz 8MB L3 Cache LGA 1156 95W Quad-Core Processor BX80605I5750
LINK: http://www.newegg.co...N82E16819115215

GFX CARD
EVGA 01G-P3-1373-AR GeForce GTX 460 (Fermi) Superclocked EE 1GB 256-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card
LINK: http://www.newegg.co...N82E16814130568

RAM
CORSAIR Vengeance 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CMZ8GX3M2A1600C8
LINK:http://www.newegg.com/Product/Product.aspx?Item=N82E16820233147

HARD-DRIVE
Western Digital Caviar Black WD5002AALX 500GB 7200 RPM 32MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive -Bare Drive
LINK: http://www.newegg.co...N82E16822136795

MOBO
ASUS P7P55D-E LX LGA 1156 Intel P55 SATA 6Gb/s USB 3.0 ATX Intel Motherboard
LINK: http://www.newegg.co...N82E16813131634

PSU
CORSAIR CMPSU-750TX 750W ATX12V v2.2 SLI Certified CrossFire Ready 80 PLUS Certified Active PFC Compatible with Core i7 Power Supply
LINK: http://www.newegg.co...N82E16817139006

CASE
Antec Three Hundred Illusion Black Steel ATX Mid Tower Computer Case
LINK: http://www.newegg.co...N82E16811129066

DVDRW
LG DVD±RW SuperMulti Drive 22X DVD+R 8X DVD+RW 16X DVD-ROM 48X CD-R 32X CD-RW 48X CD-ROM Black SATA Model GH22NS50 Bulk - OEM
LINK: http://www.newegg.co...N82E16827136216


TOTAL around 877.92



"You're a son like Elroy/ And you'd be happy as hell to get a record deal/ Maybe your soul you sell for the mass appeal."

#68 forsayken

forsayken
  • Member
  • 6,904 posts

Posted 24 August 2011 - 08:24 AM

View PostMass Appeal, on 24 August 2011 - 01:45 AM, said:

GREAT THREAD!
I am in the works of wanting to put together a good gaming rig and plan to spend about $900. My friend who knows his stuff is gonna be helping me with it since I have never put one together and well i really would love to learn more about computers. The newegg video on the front page of this thread is pretty good and it honestly doesnt seem too tough. I am pretty much building it for Battlefield 3 and other PC games so i wanna be able to run them pretty well. My buddy put a list of parts together for me just wanted to get any additional input from the Bad Cartridge PC guys on anything I need to tweak.

You should use a P67/Z68 mobo with a Core i5 2500k. What you listed is obselete and no longer worth buying under nearly all circumstances. CPU is out of stock anyways.

The GTX 460 is kind of old too. I'm not so sure I'd settle for that at time this. AMD are releaseing new boards sometime this year (most likely, anyways) but something like the 6870 or 560Ti would probably be more ideal. 6870 is a bit faster than the 460 1GB and I bet you can find it cheaper than the 460. 560Ti is a bit more expensive but you get what you pay for.

#69 cusideabelincoln

cusideabelincoln
  • Member
  • 4,292 posts

Posted 24 August 2011 - 04:53 PM

View PostMass Appeal, on 24 August 2011 - 01:45 AM, said:

GREAT THREAD!
I am in the works of wanting to put together a good gaming rig and plan to spend about $900. My friend who knows his stuff is gonna be helping me with it since I have never put one together and well i really would love to learn more about computers. The newegg video on the front page of this thread is pretty good and it honestly doesnt seem too tough. I am pretty much building it for Battlefield 3 and other PC games so i wanna be able to run them pretty well. My buddy put a list of parts together for me just wanted to get any additional input from the Bad Cartridge PC guys on anything I need to tweak.

Intel Core i5-750 Lynnfield 2.66GHz 8MB L3 Cache LGA 1156 95W Quad-Core Processor BX80605I5750
LINK: http://www.newegg.co...N82E16819115215

GFX CARD
EVGA 01G-P3-1373-AR GeForce GTX 460 (Fermi) Superclocked EE 1GB 256-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card
LINK: http://www.newegg.co...N82E16814130568

RAM
CORSAIR Vengeance 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CMZ8GX3M2A1600C8
LINK: http://www.newegg.co...N82E16820233147

HARD-DRIVE
Western Digital Caviar Black WD5002AALX 500GB 7200 RPM 32MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive -Bare Drive
LINK: http://www.newegg.co...N82E16822136795

MOBO
ASUS P7P55D-E LX LGA 1156 Intel P55 SATA 6Gb/s USB 3.0 ATX Intel Motherboard
LINK: http://www.newegg.co...N82E16813131634

PSU
CORSAIR CMPSU-750TX 750W ATX12V v2.2 SLI Certified CrossFire Ready 80 PLUS Certified Active PFC Compatible with Core i7 Power Supply
LINK: http://www.newegg.co...N82E16817139006

CASE
Antec Three Hundred Illusion Black Steel ATX Mid Tower Computer Case
LINK: http://www.newegg.co...N82E16811129066

DVDRW
LG DVD±RW SuperMulti Drive 22X DVD+R 8X DVD+RW 16X DVD-ROM 48X CD-R 32X CD-RW 48X CD-ROM Black SATA Model GH22NS50 Bulk - OEM
[/font][font=Arial, Helvetica, sans-serif]LINK: http://www.newegg.co...N82E16827136216

Your buddies parts are outdated.  The most glaring issues are the i5 760 and GTX 460.  Intel has replaced it with the i5 2500k for the same price, and the 2500k is much faster.  2500K also requires a different motherboard. The particular GTX 460 chosen is overpriced.  Nvidia has replaced the GTX 460 with the GTX 560, which is faster and can be found for the same price as that EVGA Superclocked card.  AMD also offers the HD 6870 as a faster alternative to the GTX 460, and they can be found cheaper than that one.

There are more changes you can do to get a better build for your money. Unless you want the 5-year warranty on the Western Digital hard drive, I'd recommend you go with a 1TB drive like the Samsung F3.  I would consider these cases better options than the Three Hundred: CM HAF 912, NZXT Beta Evo, Rosewill Future, Rosewill Challenger, Xigmatek Utgard, Rosewill SmartOne, XION Classic Series, NZXT M9, Sentry BX1-4237, Lian Li Lancool K58, CM 690 II Basic, CM Storm Scout, Fractal Design Core 3000, CM Storm Enforcer

We can't really suggest more changes without knowing how much you're willing/wanting to spend. For example if you don't want to spend anymore than what you currently listed, the 750W Corsair, while good, is considerably overkill for your system.  You can knock off $50 by dropping down to a 600W PSU or 620W which in turns you means you can spend more other parts (and I would recommend you spend more on the video card). Take a look at the OP again and answer some of those questions.  One additional question:  Do you plan to upgrade this computer often?
TwitchTV, Steam, TF2, BF3, BFBC2, BF2, Xfire, Backloggery, Xbox/GFWLive
| Origin, Onlive, Rockstar SC usernames = cusideabelincoln | Uplay = copperlincoln | NFS Hot Pursuit = cusideabelincoln |

#70 Mass Appeal

Mass Appeal
  • Member
  • 1,102 posts

Posted 25 August 2011 - 06:27 AM

View Postcusideabelincoln, on 24 August 2011 - 04:53 PM, said:

Your buddies parts are outdated.  The most glaring issues are the i5 760 and GTX 460.  Intel has replaced it with the i5 2500k for the same price, and the 2500k is much faster.  2500K also requires a different motherboard. The particular GTX 460 chosen is overpriced.  Nvidia has replaced the GTX 460 with the GTX 560, which is faster and can be found for the same price as that EVGA Superclocked card.  AMD also offers the HD 6870 as a faster alternative to the GTX 460, and they can be found cheaper than that one.

There are more changes you can do to get a better build for your money. Unless you want the 5-year warranty on the Western Digital hard drive, I'd recommend you go with a 1TB drive like the Samsung F3.  I would consider these cases better options than the Three Hundred: CM HAF 912, NZXT Beta Evo, Rosewill Future, Rosewill Challenger, Xigmatek Utgard, Rosewill SmartOne, XION Classic Series, NZXT M9, Sentry BX1-4237, Lian Li Lancool K58, CM 690 II Basic, CM Storm Scout, Fractal Design Core 3000, CM Storm Enforcer

We can't really suggest more changes without knowing how much you're willing/wanting to spend. For example if you don't want to spend anymore than what you currently listed, the 750W Corsair, while good, is considerably overkill for your system.  You can knock off $50 by dropping down to a 600W PSU or 620W which in turns you means you can spend more other parts (and I would recommend you spend more on the video card). Take a look at the OP again and answer some of those questions.  One additional question:  Do you plan to upgrade this computer often?



I am looking to learn more about computers so yes I will be planning to upgrade it in the future. PC gaming has always interested me so I would love to learn as much as I can.  I am sort of on a budget with rent and bills so all I can afford willing to spend around $800-900 and dont need Windows 7 as I can install that myself.  I am totally open ears on whatever suggestions and builds you guys have.
"You're a son like Elroy/ And you'd be happy as hell to get a record deal/ Maybe your soul you sell for the mass appeal."




0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
